FleetPC-9-B-GTX1050Ti Car-PC (Intel Core i7-8700T 6x4.0Ghz, NVIDIA GeForce GTX 1050Ti GPU, Autostart-Controller, 9-48V Automotive PSU, 10x LAN, 3x dP, 4x HDMI) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
FleetPC-9-B-GTX1050Ti Car-PC (Intel Core i7-8700T 6x4.0Ghz, NVIDIA GeForce GTX 1050Ti GPU, Autostart-Controller, 9-48V Automotive PSU, 10x LAN, 3x dP, 4x HDMI) [<b>FANLESS</b>]
  • 3x RS-232/422/485 !
  • 8x GPI + 4x GPO !
  • 3x MiniPCIe !
  • 2x SATA Slots !

The FleetPC-9B Car-PC series offers high performance and maximum connectivity and optional integrated NVIDIA GPU. The 10x LAN ports (optional 8x with POE) and dual hot-swappable 2.5" drive bays (RAID 0/1/5 support) and internal mSATA/M.2 module connector, the system is for example perfect for digital IP video recording applications (police, etc.) and for intensive KI/AI-applications.

3x Mini-PCIe slots allow maximum expandability options including LTE, UMTS, 3G, 3.5G, GSM/GPRS, WLAN and Bluetooth. Two SIM card slots enable redundant mobile connectivity with only one single modem card.

3x RS232/422/485, 4x digital In/Out and 4xUSB3.0 allow maximum connectivity
[more]

Share

The FleetPC-9B Car-PC series offers high performance and maximum connectivity and optional integrated NVIDIA GPU. The 10x LAN ports (optional 8x with POE) and dual hot-swappable 2.5" drive bays (RAID 0/1/5 support) and internal mSATA/M.2 module connector, the system is for example perfect for digital IP video recording applications (police, etc.) and for intensive KI/AI-applications.

3x Mini-PCIe slots allow maximum expandability options including LTE, UMTS, 3G, 3.5G, GSM/GPRS, WLAN and Bluetooth. Two SIM card slots enable redundant mobile connectivity with only one single modem card.

3x RS232/422/485, 4x digital In/Out and 4xUSB3.0 allow maximum connectivity. 3x dP connectors (+ 4x HDMI with systems having GTX graphics adapter) allow the connection of a variety of displays. The integrated graphics unit supports DirectX 12, Vulkan, OpenGL 4.5, OpenCL and CUDA.

Extensive setup and programming options and Watchdog-ability, optional backup battery kit, wide input range (9-48V), extended temperature range (-40° to 70° C) and vibration-/schock-/eMark-certification complete the offer and make the FleetPC-9B series the ultimate platform for any mobile application need.

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 1-2x 2.5" HDD/SSD oder mSATA SSD
- DDRIV SO-DDR-RAM

The PC is completely fanless and is equipped with an Intel Core i7-8700T 6x4.0Ghz CPU.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots.
We recommend these modules:
- LTE / HSPA / UMTS / EDGE Mini-PCIe Modem (Huawei ME909s-120)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]

Features :
- Fanless
- Intel Core i7-8700T 6x4.0Ghz CPU
- NVIDIA GeForce GTX 1050Ti GPU
- Dual Hot Swappable SATA Storage + mSATA/M.2
- Dual Sim card slot
- 4x USB3.0
- 3x RS232
- 10x Gigabit LAN (optional 8x with POE, max. 100W)
- 3x dP + 4x HDMI
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 8x DI / 4x DO
- Vibration/shock tested

Dimensions / Weight 260mm W x 250mm D x 95mm H, 5.08kg
CPU Intel Core i7-8700T 6x4.0Ghz
Chipset / FSB Intel Q370
RAM 2x SO-DDR-4 RAM (up to 326GB 2133Mhz)
Graphics NVIDIA® GeForce GTX 1050TI GPU (768 CUDA Cores) Support for OpenGL 4.5 and OpenCL™ 1.2 Support for DirectX® 12 (Feature Level 12_0) features
Max Resolution (HDMI 2.0b) :4096x1260@60Hz
GPS Optional
Expansion - 3x Mini-PCIe (1x mSATA)
- 1x M.2 A-E Key 2230
OS Support Windows 10, Linux
Vibration & Shock MIL-STD-810G
Operating temperature -40~70°C (with SSD)
Certification CE, FCC, eMark E13

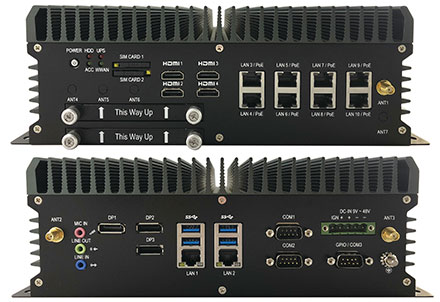

I/O - 9x Gigabit LAN (Intel I210-AT) + 1x Gigabit LAN (Intel I219LM, support AMT) [optional 8x port with POE, total max. 100W]
- 3x RS232/422/485
- 4x USB3.0
- DIO port (8in, 4out)
- SPK Out
- MIC-In
- Line-In
- 3x dP
- 3x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
Drive bays 2 x 2.5" SATA HDD/SSD drive bay (Support RAID 0,1,5)
1 x mSATA / M.2
Power supply 9~48V DC PSU included
- Power off Delay Time Setting by Software, Default 5min
- Backup Battery Kit (optional)
Scope of supply - FleetPC-9B-GTX1050Ti PC with Intel Core i7-8700T (6x4.0Ghz), mounting
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Drivers (Windows) Download
Test Tools Download
Manual [EN] Download
BIOS (Secure Boot+TPM) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

HDMI Output Configuration
Port 1 - 3 is from Intel graphic card
Port 4 - 7 is from NVIDIA graphic card
