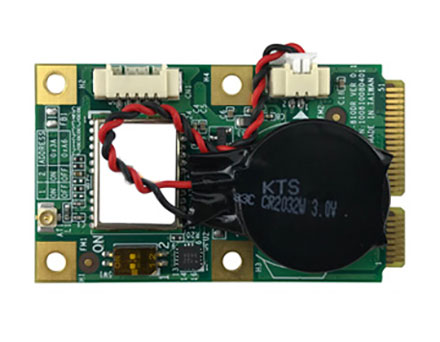

VDB-810DR Mini-PCIe GPS (u-blox M8 GPS/QZSS+GLONASS+BeiDou, G-Sensor, Untethered Dead Reckoning)

VDB-810DR Mini-PCIe GPS (u-blox M8 GPS/QZSS+GLONASS+BeiDou, G-Sensor, Untethered Dead Reckoning)
  • GPS/QZSS, GLONASS, BeiDou !
  • 72-channels !
  • -167dBm SuperSense !
  • 10 Hz Update Rate !

Embedded u-blox NEO-M8U GPS with Untethered Dead Reckoning UDR & G-Sensor Mini PCIe Card

Features :
u-blox 72-channel NEO-M8U UDR module including 3D inertial sensorsengine
GNSS data is available in NMEA, UBX & RTCM protocols
Max. 20Hz Navigation update rate
Position accuracy 2m CEP
Temperature range: -40 to +85°C
Mini PCIe Signal Type USB2.0
Standard Full/Half-size Mini PCIe Card connect to computer easily


Share

139.95 EUR
incl. 19% VAT, plus shipping
In Stock (45 pcs)

5 von 5 Sternen
1 ratings
Add to cart
Specifications
Receiver Type
Chipset NEO-M8U
Frequency GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1-SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C
Channels Supports 72 Channels
GNSS Center Frequency BeiDou : 1561.098 MHz, GPS : 1575.42 MHz, Glonass : 1602.5625
Sensitivity

GPS&GLONASS; GPS GLONASS Beidou Galileo
-160dBm -160dBm. -160dBm -160dBm -154dBm
-160dBm -159dBm -156dBm -155dBm -152dBm
-148dBm -147dBm -145dBm -143dBm -153dBm
-157dBm -156dBm -155dBm -155dBm -151dBm
Tracking & Navigation
Reacquisition
Cold Start
Hot Start
Time to First Fix (TTFF)

GPS&GLONASS; GPS GLONASS Beidou Galileo
26 Sec. 30 Sec. 31 Sec. 39 Sec. 57 Sec.
1 Sec. 1 Sec. 1 Sec. 1 Sec. 1 Sec.
3 Sec. 3 Sec. 3 Sec. 7 Sec. 7 Sec.
Cold Start
Hot Start
Aided Starts
Accuracy
Horizontal Position
GPS&GLONASS; GPS GLONASS Beidou Galileo
2.5m 2.5m 4m 3m TBC
Velocity Accuracy 0.5 m/s type
Heading Accuracy 1 degrees type
I/O Port 1 x Timepulse (connector type: 1 x 5pins pitch 1.27mm 90 degree)
1 x Battery Backup (connector type: 1 x 2pins pitch 1.27mm 180 degree)
Max Navigation 99% <60ns
Update Rate Typical : 1Hz Max. : 20Hz (Configurable)
Operational Limits
Dynamices <= 4g
Altitude 50,000 m
Velocity 500 m/s
Output Message Format
GPS Protocol NMEA, UBX Binary, GGA, GLL, GSA, GSV, RMC, VTG, TXT
Multipath Suppression
Type Intelligent multipath detection and suppression
G-Sensor
Type 3-axis accelerometer
A-GPS
Type Supports AssistNow® Online and Offline, OMA SUPL Compliant
Environmental Characteristics
Operating Temp. -40ºC to +85ºC
Storage Temp. -40ºC to +85ºC
Peak Supply Current Max=150mA
Max Performance Acquisition =67mA
Eco Mode Tracking = 29mA
Power Input 3.3V +-10% VDC input
Dimensions 51 x 30 (mm)
Ordering Information
Part Number VDB-810DR-000
Description Embedded u-blox NEO-M8U GPS with Untethered Dead Reckoning UDR & G-Sensor Mini PCIe Card
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from jokuo am 11.05.2021 |

I'm really satisfied with quick respond to all of my questions!
