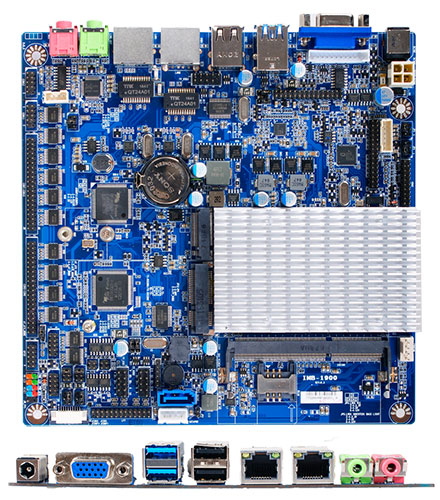

Jetway IMB-1900-2L (Intel Bay Trail)

Jetway IMB-1900-2L (Intel Bay Trail)

  • Intel Celeron J1900 SoC Processor
  • Up to 2 Displays, VGA, HDMI Header, 24-bit LVDS
  • 12 * Serial Ports (10*RS232, 2*RS232/422/485/TTL)
  • 2 * Gigabit LAN Ports, 1 * M.2 SATA 2242/2260
  • Built-in +12V DC Power Jack
  • ECO-design for EuP/ErP


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :
Chipset – INTEL® Celeron™ J1900 (2.0 GHz) quad-core processor
– 2 Phase CPU Power Support
I.O Chipset – FINTEK F81866AD-I
Memory – 1*SO-DIMM slot
– Support DDR3L 1333
– Max. capacity of system memory up to 8GB
Expansion Slots – 1* Mini PCI-E connector
Storage – 1* Serial ATA2 3Gb/s connector
– 1* M.2 Connector(2242/2260)
Audio – ALC662 Audio CODEC
– HD Audio CODEC
Ethernet LAN – REALTEK® RTL8111G Chip
– 2* PCI Express Gigabit LAN
LVDS – Onboard 24-bit Dual channel
USB – 1* USB3.0 Port
– 9* USB 2.0 (3 distribute in back panel, 6 distribute in mid-board)
Special Features – Support CPU Smart Fan
– Support Watch dog Technology
– Support GPIO Technology
– Support VGA header
– Support HDIM header
– Support Power On board
– Support Amplifier function(3W)
– Support 2*RS422/RS485/RS232 COM ports
– COM1/COM2 Support TTL
– Thunder Protection Function
– All Solid Capacitor design
– All Power Pack MOSFET design
Back Panel I / O – 1* USB3.0 port
– 3* USB 2.0 ports
– 2* RJ-45 ports
– 1* Line-out connector
– 1* MIC
– 1* VGA port
– 1* 12V DC in
Internal I / O – 3* USB 2.0 headers for 6 USB 2.0 ports
– 1* CPU / Chassis Fan connectors
– 12* COM headers(COM1/COM2 For RS422/RS485/RS232 and TTL )
– 1* Parallel header
– 1* PS2/KB header
– 1* 4-pin ATX 12V Power connector
– 1* 4-pin SATA Power connector
– 1* 15-pin VGA header
– 1* 20-pin HDMI header
– 1* 24-bit Dual Channel LVDS header
– 1* GPIO header
– 1* Mini PCI-e connector
– 1* M.2 Connector(2242/2260)
– 1* SATA Connector
– 1* Speaker header(Amplifier function 3W)
– 1* Front panel header
– 1* SIM Card socket
BIOS – AMI 64MB SPI ROM
Form Factor – Thin mini ITX Form Factor(170mm X 170mm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
